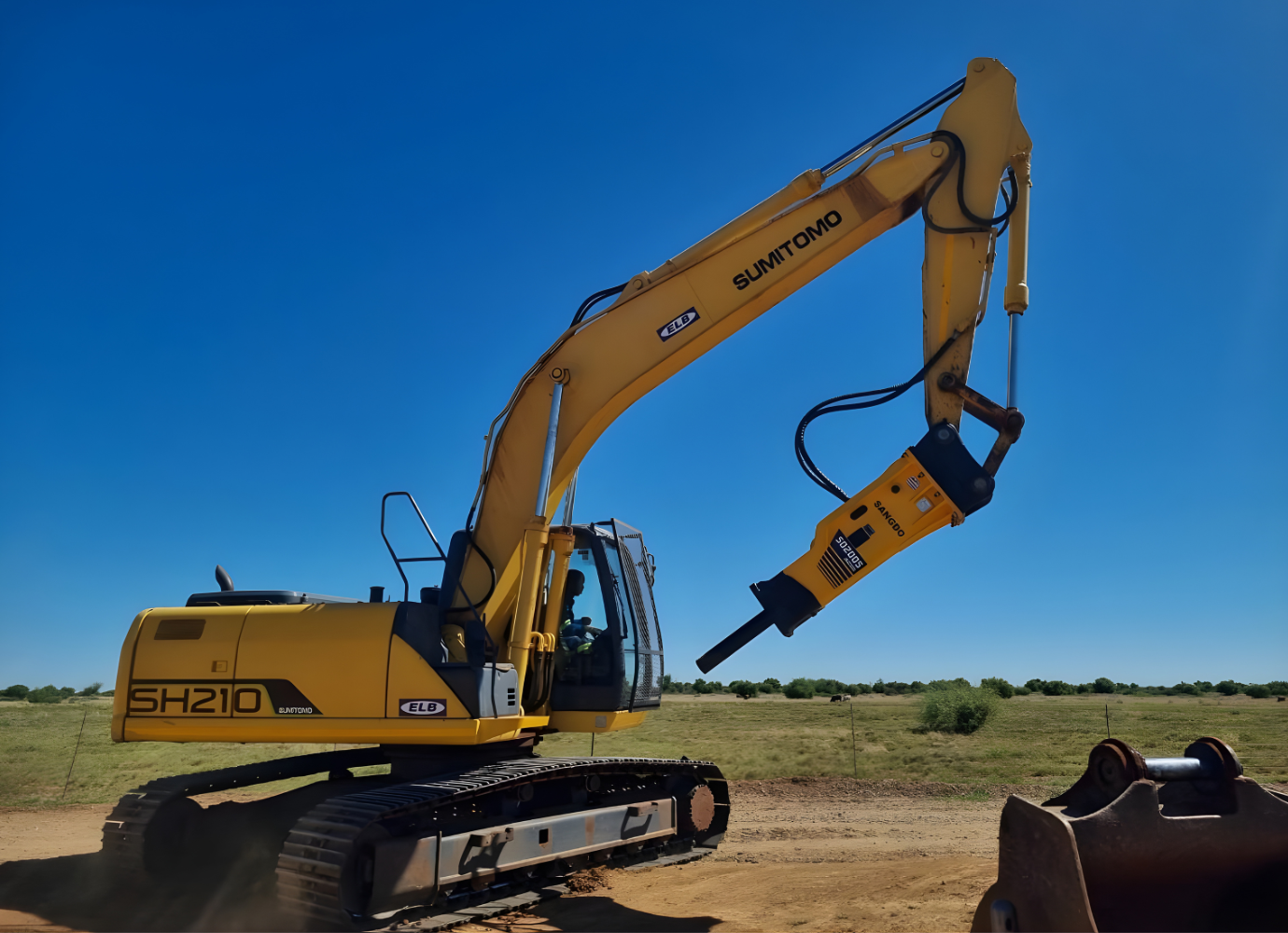

Your hydraulic hammer is more than just a tool; it’s the muscle behind your operation, a significant investment, and often the difference between meeting a deadline and facing costly downtime. At Malleo Equipment, we engineer our breakers for the toughest South African conditions, but even the most robust equipment needs smart care to perform at its peak.

Think of maintenance not as an optional chore but as the most strategic way to protect your bottom line. Consistent, proper care is the key to maximising productivity, minimising unplanned stoppages, and ensuring the low total cost of ownership we promise every customer.

This guide breaks down the essential, proactive steps you and your crew can take to get the longest, most productive life from your hammer.

Tip 1: The Non-Negotiable Daily Inspection (The 5-Minute Lifesaver)

Before the engine even starts, a quick visual check can prevent a major failure. Make this a non-negotiable part of your pre-start routine.

• Check the Tool and Bushings: Look for signs of “mushrooming” on the moil point or cracks on the tool body. Inspect the bushings for excessive wear or scoring. A worn bushing doesn’t just damage the tool; it allows misalignment that stresses the entire hammer.

• Inspect Pins, Bolts, and Hoses: Ensure all retaining pins and side bolts are secure and tight. Check hydraulic hoses for abrasions, cracks, or signs of leaking oil. A blown hose means instant downtime.

• The Grease Ring Test: Look at the tool shaft after operation. You should see a complete “ring” of grease pushed out around it. If this ring is missing or partial, your lubrication schedule isn’t adequate (see Tip 2).

Tip 2: Lubrication is Your Hammer’s Lifeline (Not an Afterthought)

The interface between the tool and the bushings is a high-friction, high-heat zone. Proper lubrication is the single easiest way to prevent catastrophic wear.

• Use the Right Grease: Standard lithium grease often fails under extreme pressure and heat. Always use a high-quality molybdenum disulfide (“moly”) paste or chisel grease specifically designed for hydraulic breakers. Malleo Lubes are formulated for exactly this purpose.

• Lubricate Frequently: Re-lube every 1-2 hours of continuous operation, or more often in abrasive or high-dust conditions. Consistency is far more important than quantity.

• Apply it Correctly: When greasing, apply pressure to the tool to push it slightly into the housing. This helps force fresh grease into the critical wear area between the tool and the bushing, purging out grit and contaminants.

Tip 3: The Operator’s Touch – Your #1 Factor for Longevity

How the hammer is used has a greater impact on its lifespan than almost any other factor. Proper technique prevents immense internal stress.

• Stay Perpendicular: Always keep the tool as perpendicular as possible to the material being broken. Striking at an angle creates massive side-load forces that damage the tool, bushings, and housing.

• Let the Hammer Do the Work: Apply only enough downforce from the carrier to keep the tool in contact with the material. Do not use the excavator’s full weight to “push” the breaker into the job.

• Avoid “Blank Firing” or “Prying”: Never operate the hammer when the tool is not in contact with material. The energy from the piston has nowhere to go but back into the hammer’s internal components. Similarly, never use the tool as a pry bar.

• The 15-Second Rule: If you’re working on one spot and the material isn’t breaking within 15 seconds, stop. Reposition the tool. A breaker is designed for impact, not drilling.

Tip 4: Be a System Guardian – Protect the Hydraulics

Your hammer is only as healthy as the hydraulic system that powers it.

• Monitor Oil Quality and Levels: Check your carrier’s hydraulic oil level regularly. Contaminated, old, or low oil is a primary cause of hammer inefficiency and pump damage. Look for signs of milkiness (water) or excessive debris.

• Keep It Clean: When connecting or disconnecting the hammer, always use clean hydraulic coupler caps. A single grain of sand can wreak havoc on the system.

• Check Nitrogen Pressure: Most hammers have a nitrogen accumulator that cushions the piston. Consult your Malleo operator’s manual for the correct pressure. Low pressure leads to harsh metal-on-metal impacts and slower cycle times; too high can damage the front head. This should be checked monthly by a trained technician.

Tip 5: Match Your Tool to the Task

Using the wrong moil is like using a screwdriver as a chisel—it might work for a second, but failure is imminent.

• Select the Right Tool: Use a pointed moil for hard, solid rock and a blunt tool for concrete or slab breaking. Worn-down tools transfer energy poorly and increase stress on the hammer.

• Rotate Your Tools: If possible, have a second tool on hand and rotate them periodically. This allows tools to cool down and extends the life of each one.

Tip 6: Listen to Your Hammer – Recognise the Warning Signs

Your equipment talks to you. Learning its language prevents small issues from becoming big repairs.

• Change in Sound: A ringing “ping” instead of a solid “thud” can indicate low nitrogen or a tool/bushing issue. Any metallic slapping or rattling needs immediate investigation.

• Loss of Power or Speed: If the hammer seems slower or less powerful, don’t just push the operator lever harder. Stop and check lubrication, hydraulic pressure, and for potential internal wear.

• Excessive Vibration: Unusual vibration often points to a broken or worn internal part, like a piston or valve.

When DIY Stops: Partner with Malleo for Expert Care

Even with perfect daily maintenance, wear parts will eventually need service. This is where the Malleo promise takes over. Trying to diagnose and repair major internal issues without expert training can lead to more damage and greater cost.

Our nationwide network of service partners and our central workshop are equipped for:

• Comprehensive Bench Testing & Diagnostics

• Bushing, Seal, and Piston Kits Replacement

• Accumulator Recharging & System Overhauls

• Guaranteed Supply of Genuine Malleo Parts & Moils

Think of our service team as an extension of your maintenance crew. A scheduled service with us is an investment that prevents ten times its value in unplanned downtime.

The Bottom Line: Consistency is King

Extending your hydraulic hammer’s life isn’t about one heroic repair; it’s about the consistent, disciplined application of these fundamental practices. By integrating these tips into your daily routine, you’re not just maintaining a piece of equipment—you’re safeguarding your productivity, your profits, and your partnership with Malleo Equipment.
